The Simple 4-Bit Computer

A modular computer with a vintage look.

Prizes

Informations

  • Presentation poster for Monts’ Show (in French)
  • Atmel AVR microcontroller (ATmega328P) programed in pure AVR C
  • TLC5940 IC to drive the LEDs
  • 3D modeling with Fusion 360

Details

What I like most in computing is the low-level stuff. Thus I have always been attracted by the computer’s beginning era, with its TTL logic circuits, its assembly languages, its various architectures…

After making the Kenbak−1 Replica, I saw Galactic Electronics’ “4 bit CPU”. I now wanted to make my own 4 bit retro computer, with LEDs and switches (because that’s just the coolest way to interact with a computer), programmable in machine code (in assembly language by extension). No wired logic inside but only a simple microcontroller.

I hope I will later find the time to make a computer entirely made of logic integrated circuits like this one, very raw, or the Magic−1, quite complex or even that one from Ben Eater, entirely made on breadboards, with excellent explanations. I made it: the GDBC!

This project has evolved and should probably be called “The Simple Modular Computer”, as it can now emulate other computers like Galactic Electronics’ 4 bit CPU or that good old Kenbak−1.

This computer was showcased at the 2018 edition of the Monts’ Young Inventors and Creators Show, this is the second time I participated, the first time was in 2016 with the IntelliCasier.
I won first prize with my three showcased projects about vintage computing, the two others being GilDev Breadboard Computer and the Kenbak-1 Replica.

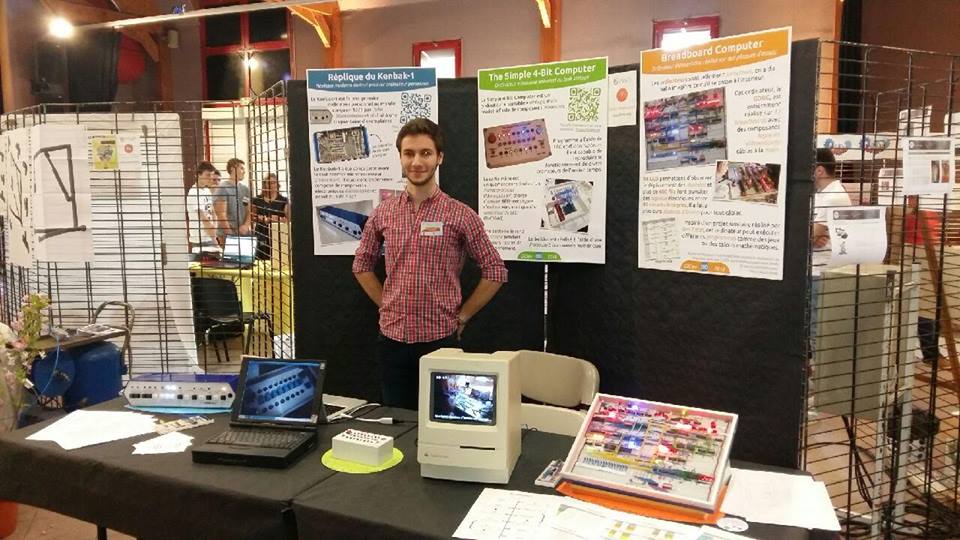

My booth
Presentation poster, available in full size in the “Informations” section at the top
The award ceremony
My award

Making of the case

3D model made with Fusion 360

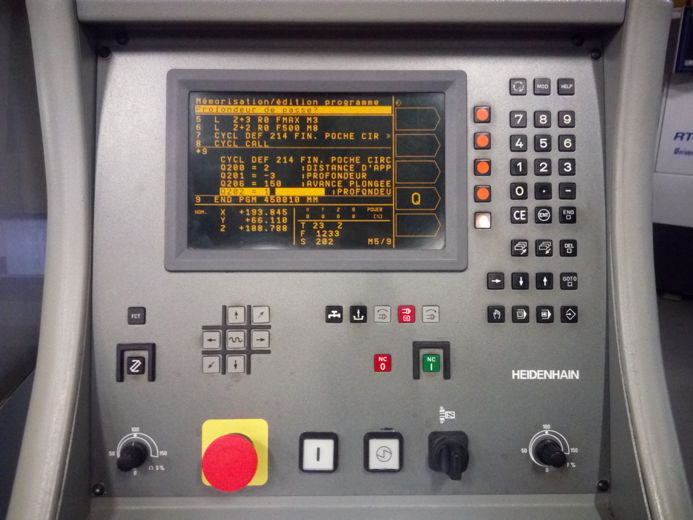

Milling CNC programming

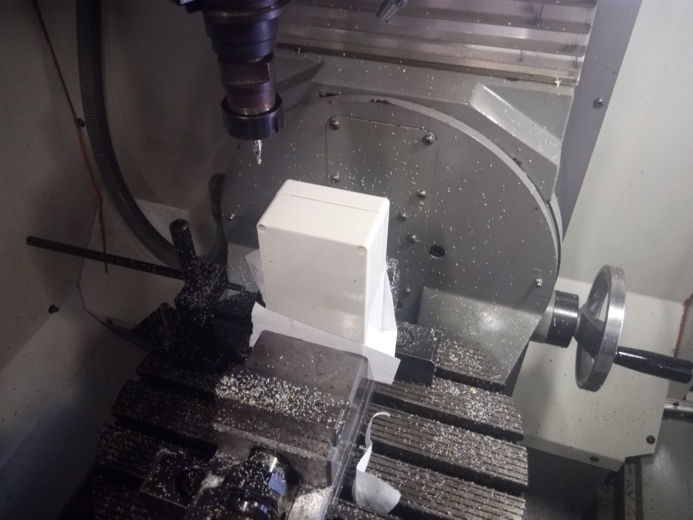

Milling of the case

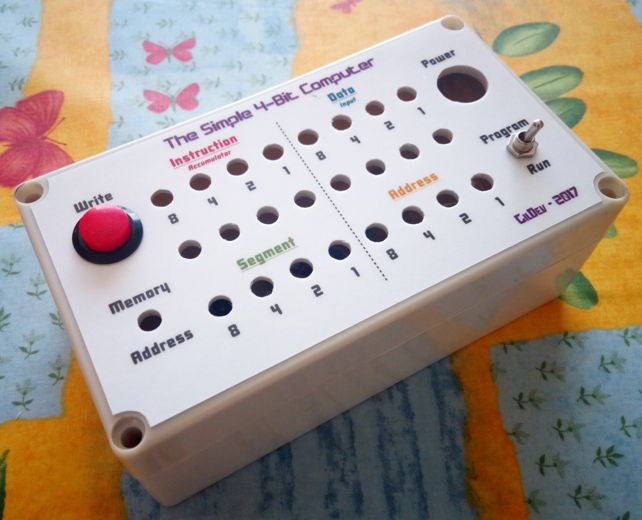

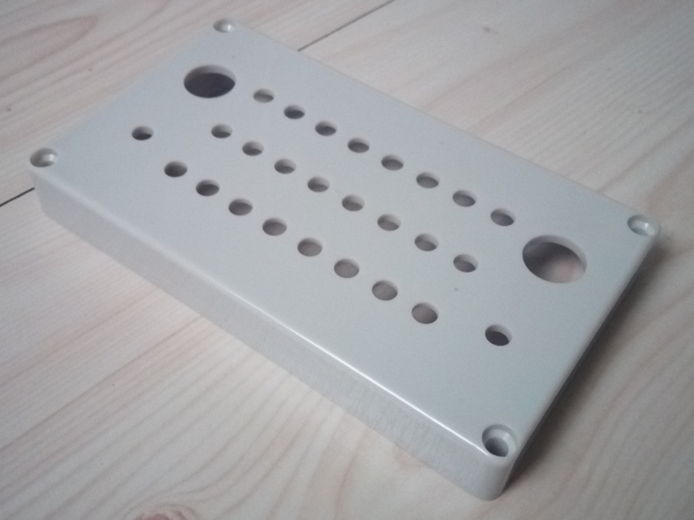

Case milled

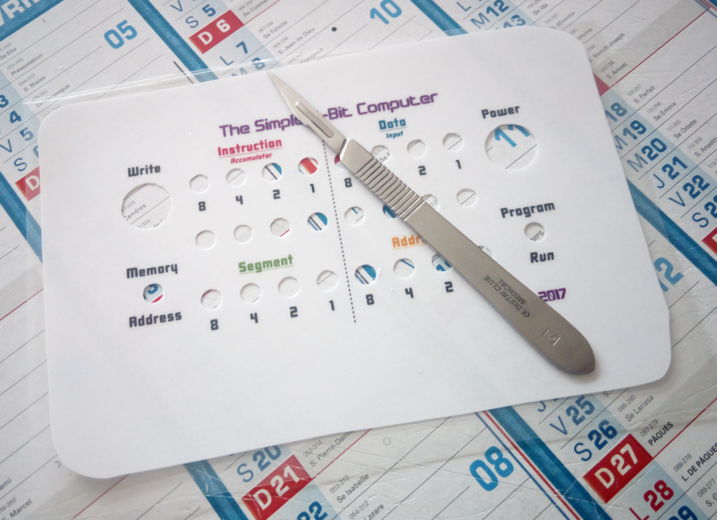

Cutting the overlay with a scalpel
Sticking the overlay to the front panel with double-sided tape

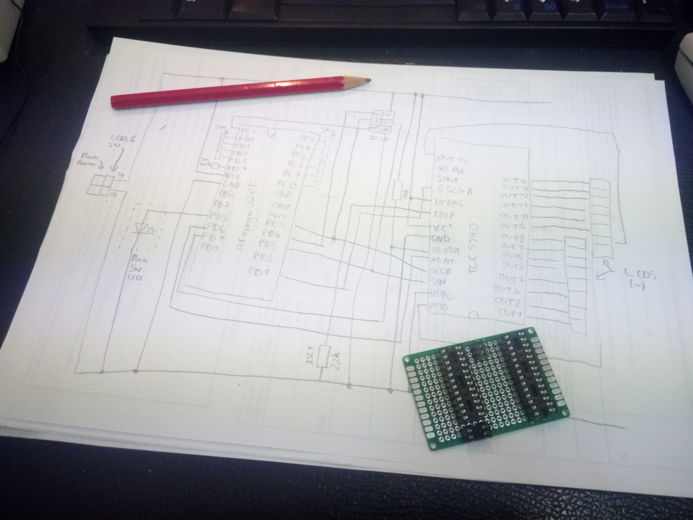

Starting to make the electronic circuit

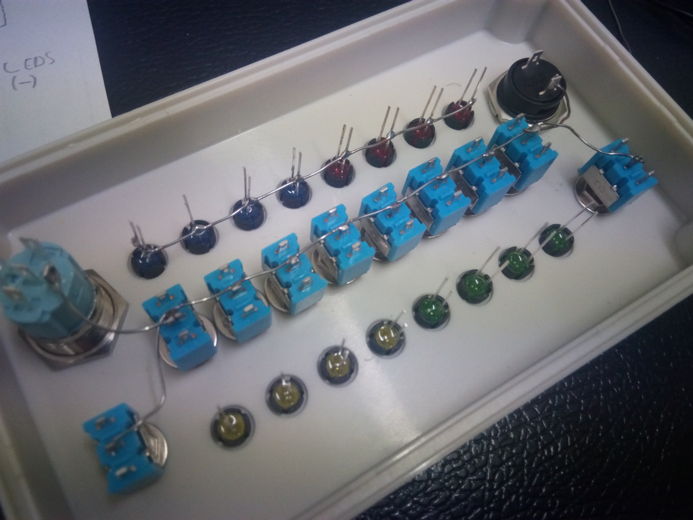

Attaching and soldering LEDs and switches

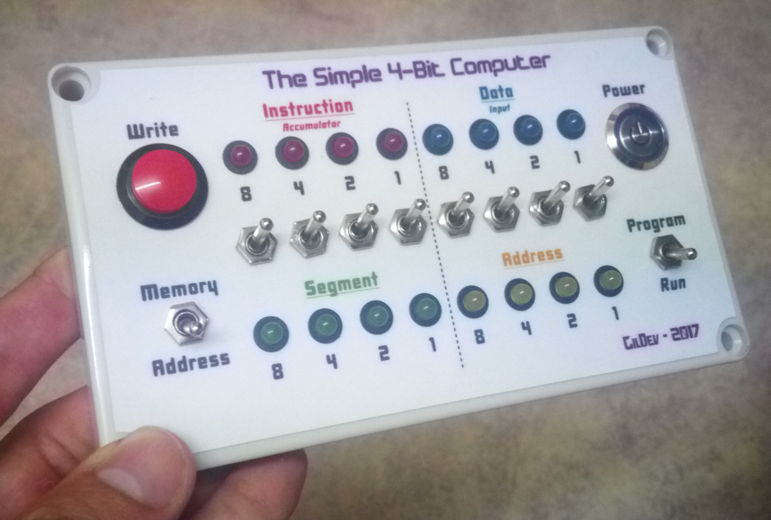

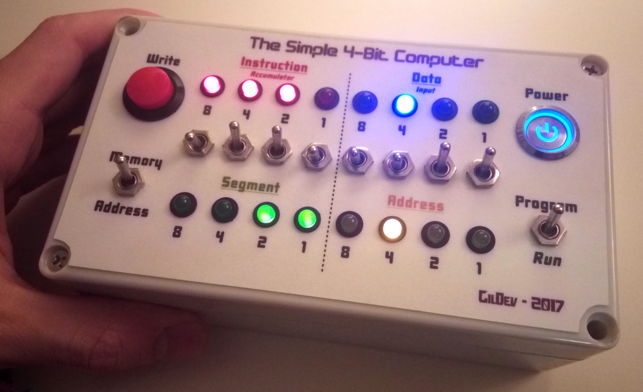

Front panel finished!

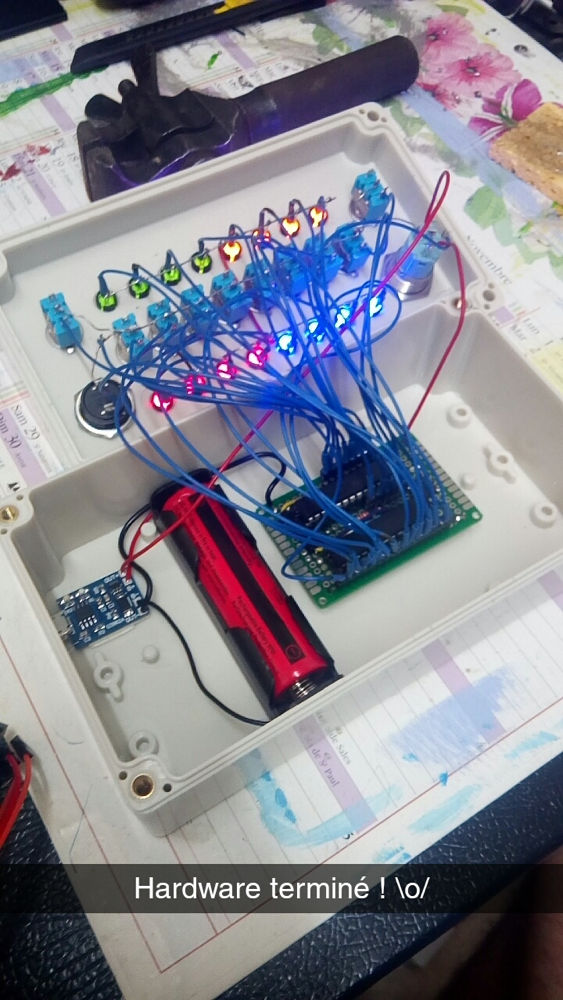

Wiring finished!
